Thermal imaging cameras

Thermal cameras create images based on the heat that always radiates from any object, vehicle or person.

List of Thermal Imaging Companies and Vendors

Name
List
AXIS
List
Bosch
List
Cantronic
List
Dahua
List
Hanwha
List
Hikvision
List
Flir
List
Ganz
List
Mobotix
List
Pelco
List
Thermoteknix
List
Vivotek
List

SELECTED CAMERAS

AXIS Q1941-E

AXIS Q1941-E
Feature
Parameters
Type
Thermal Network Camera
Thermal sensor
384x288 Uncooled Micro bolometer
Response Waveband
8-14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
70 mK
Thermal sensor accuracy
Visual sensor
none
Link
Q1941-E
Documentation
Spec
Price
2920 £

AXIS Q1942-E

AXIS Q1942-E
Feature
Parameters
Type
Thermal Network Camera
Thermal sensor
640x480 Uncooled Micro bolometer
Response Waveband
8-14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
50 mK
Thermal sensor accuracy
Visual sensor
none
Link
Q1942-E
Documentation
Spec
Price
5216 £

AXIS Q8641-E

AXIS Q8641-E
Feature
Parameters
Type
Thermal Network Camera
Thermal sensor
384x288 Uncooled Micro bolometer
Response Waveband
8-14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
70 mK
Thermal sensor accuracy
Visual sensor
none
Link
Q8641-E
Documentation
Spec
Price
6000 £

AXIS Q8642-E

AXIS Q8642-E
Feature
Parameters
Type
Thermal Network Camera
Thermal sensor
640x480 Uncooled Micro bolometer
Response Waveband
8-14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
50 mK
Thermal sensor accuracy
Visual sensor
none
Link
Q8642-E
Documentation
Spec
Price
8000 £

AXIS Q8741-E

AXIS Q8741-E
Feature
Parameters
Type
Bispectral PTZ Network Camera
Thermal sensor
384x288 Uncooled Micro bolometer
Response Waveband
8-14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
70 mK
Thermal sensor accuracy
Visual sensor
1920x1080 1/2.8” progressive scan CMOS
Link
Q8741-E
Documentation
Spec
Price
10000 £

AXIS Q8742-E

AXIS Q8742-E
Feature
Parameters
Type
Bispectral PTZ Network Camera
Thermal sensor
640x480 Uncooled Micro bolometer
Response Waveband
8-14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
50 mK
Thermal sensor accuracy
Visual sensor
1920x1080 1/2.8” progressive scan CMOS
Link
Q8742-E
Documentation
Spec
Price
13000 £

AXIS Q2901-E

AXIS Q2901-E
Feature
Parameters
Type
Temperature Alarm Camera
Thermal sensor
336x256 Uncooled Micro bolometer
Response Waveband
8-14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
50 mK
Thermal sensor accuracy
Visual sensor
1920x1080 1/2.8” progressive scan CMOS
Link
Q2901-E
Documentation
Spec
Price
4500 £

Bosch VOT‑320

Bosch VOT‑320
Feature
Parameters
Type
Thermal IP Camera
Thermal sensor
320x240 Focal Plane Array (FPA) Uncooled Micro bolometer
Response Waveband
7.5 to 13.5 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
50 mK
Thermal sensor accuracy
Visual sensor
none
Link
none
Documentation
Spec
Price
3900 £

Bosch DINION 8000

Bosch DINION 8000
Feature
Parameters
Type
Thermal IP Camera
Thermal sensor
320x240 Focal Plane Array (FPA) Uncooled Micro bolometer
Response Waveband
7.5 to 13.5 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
50 mK
Thermal sensor accuracy
Visual sensor
none
Link
DINION 8000
Documentation
Spec
Price
6300 £

Cantronic FeverScan M3000N

Cantronic FeverScan M3000N
Feature
Parameters
Type
Dual Vision Network Thermal Imaging Camera Systems
Thermal sensor
324 x 256 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
Thermal sensor accuracy
0.05ºC @ 30ºC
Visual sensor
1/3" 1.3 Million Pixel CMOS Sensor
Link
FeverScan M3000N
Documentation
Spec
Price

Cantronic FeverScan M3000L

Cantronic FeverScan M3000L
Feature
Parameters
Type
Dual Vision Network Thermal Imaging Camera Systems
Thermal sensor
320 x 240 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
Thermal sensor accuracy
0.08ºC @ 30ºC
Visual sensor
1/3" 1.3 Million Pixel CMOS Sensor
Link
FeverScan M3000L
Documentation
Spec
Price

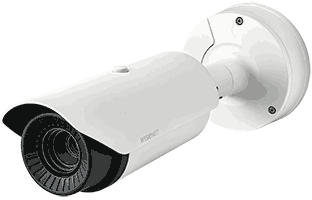

Hanwha TNO-3030T

Hanwha TNO-3030T
Feature
Parameters
Type
Dual Vision Network Thermal Imaging Camera Systems
Thermal sensor
320 x 240 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
8.3
Thermal sensor NETD
60 mk
Thermal sensor accuracy
Visual sensor
Link
TNO-3030T
Documentation
Spec
Price
4561 £

Hikvision DS-2TD2636-10

Hikvision DS-2TD2636-10
Feature
Parameters
Type
Thermal Bi-spectrum Network Bullet Camera
Thermal sensor
384 × 288 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
50
Thermal sensor NETD
50 mk
Thermal sensor accuracy
Visual sensor
1920×1080 1/2.8” Progressive Scan CMOS
Link
DS-2TD2636-10
Documentation
Spec
Price
4167 £

Hikvision DS-2TD2617-3/V1

Hikvision DS-2TD2617-3/V1
Feature
Parameters
Type
Thermal Bi-spectrum Network Bullet Camera
Thermal sensor
160 × 120 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
25
Thermal sensor NETD
40 mk
Thermal sensor accuracy
Visual sensor
1920×1080 1/2.8” Progressive Scan CMOS
Link
DS-2TD2617-3/V1
Documentation
Spec
Price
765 £

Flir DH-390 Dome

Flir DH-390 Dome
Feature
Parameters
Type
Thermal Bi-spectrum Network Dome Camera
Thermal sensor
160 × 120 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
10
Thermal sensor NETD
50 mk
Thermal sensor accuracy
Visual sensor
1920 x 1080, 2.1MP, 1.2.8 @30 fps
Link
DH-390 Dome
Documentation
Spec
Price
2500 £

Flir Elara™ FB-Series O

Flir Elara™ FB-Series O
Feature
Parameters
Type
Thermal Network Camera
Thermal sensor
320 × 240 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
25
Thermal sensor NETD
50 mk
Thermal sensor accuracy
Visual sensor
none
Link
Elara™ FB-Series O
Documentation
Spec
Price
2719 £

Flir AX8

Flir AX8
Feature
Parameters
Type
Thermal Bi-spectrum Network Camera
Thermal sensor
80x60 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
Thermal sensor NETD
100 mk
Thermal sensor accuracy
Visual sensor
none
Link
AX 8
Documentation
Spec
Price
999 £

Ganz ZT-PT

Ganz ZT-PT
Feature
Parameters
Type
MULTI SENSORS THERMOGRAPHY IP PTZ CAMERA
Thermal sensor
384 x 288 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
25
Thermal sensor NETD
40 mk
Thermal sensor accuracy
Visual sensor
1920 x 1080, 1/2.8 Type “Exmor” CMOS Sensor
Link
ZT-PT
Documentation
Spec
Price

Mobotix S16

Mobotix S16
Feature
Parameters
Type
Thermal Thermographic Indoor/Outdoor IP Security Camera
Thermal sensor
336x252 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
9
Thermal sensor NETD
50 mk
Thermal sensor accuracy
Visual sensor
2592x1944, 1/2.5“ CMOS, 5 MP
Link
S16
Documentation
Spec
Price
3671£

Mobotix Mx-M16TA-R079, Mx-M16TA-R119, Mx-M16TA-R237

detections before non-maximum suppression applied
Feature
Parameters
Type
Thermal Thermographic Indoor/Outdoor IP Security Camera
Thermal sensor
336x252 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
9
Thermal sensor NETD
50 mk
Thermal sensor accuracy
Visual sensor
1/1.8“ CMOS, 6MP (3072 x 2048)
Link
Mx-M16TA-R079, Mx-M16TA-R119, Mx-M16TA-R237
Documentation
Spec
Price
4000$-5000$

Pelco TI2314

Pelco TI2314
Feature
Parameters
Type
Thermal Bi-spectrum Network Camera
Thermal sensor
384 x 288 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
9/25
Thermal sensor NETD
40 mk
Thermal sensor accuracy
Visual sensor
640 x 480, 1024 x 768, or 1280 x 720, 1/4-inch Color HD CMOS
Link
TI2314
Documentation
Spec
Price
3618$

Pelco TI2614

Pelco TI2614
Feature
Parameters
Type
Thermal Bi-spectrum Network Camera
Thermal sensor
640x480 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
9/25
Thermal sensor NETD
40 mk
Thermal sensor accuracy
Visual sensor
640 x 480, 1024 x 768, or 1280 x 720, 1/4-inch Color HD CMOS
Link
TI2614
Documentation
Spec
Price
6395$

Vivotek TB9330-E

Vivotek TB9330-E
Feature
Parameters
Type
Thermal IP Camera
Thermal sensor
384x256 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
30
Thermal sensor NETD
50 mk
Thermal sensor accuracy
Visual sensor
none
Link
TB9330-E
Documentation
Spec
Price
3000$

Vivotek TB9331-E

Vivotek TB9331-E
Feature
Parameters
Type
Thermal IP Camera
Thermal sensor
720x480 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
30
Thermal sensor NETD
50 mk
Thermal sensor accuracy
Visual sensor
none
Link
TB9331-E
Documentation
Spec
Price
7000$

Thermal USB Cameras

Vividia HT-301

Vivotek HT-301
Feature
Parameters
Type
Thermal USB Android Camera
Thermal sensor
384x288 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
25
Thermal sensor NETD
60 mk
Thermal sensor accuracy
Visual sensor
none
Link
HT-301
Documentation
Spec
Price
789$

Seek Thermal

Seek Thermal
Feature
Parameters
Type
Thermal USB iPhone and Android Camera
Thermal sensor
206 x 156 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
9
Thermal sensor NETD
Thermal sensor accuracy
Visual sensor
none
Link
Seek Thermal
Documentation
Spec
Price
£199.96

FLIR ONE Gen 3

FLIR ONE Gen 3
Feature
Parameters
Type
Thermal Bi-Spectral Apple and Android USB Camera
Thermal sensor
80 x 60 Uncooled Micro bolometer
Response Waveband
8 - 14 μm
Thermal sensor FPS
9
Thermal sensor NETD
150 mk
Thermal sensor accuracy
Visual sensor
1440x1080
Link
FLIR ONE Gen 3
Documentation
Spec
Price
£215
